Core
- Problem statement: Modern Python machine learning libraries like NumPy and TensorFlow are failing with ‘RuntimeError: NumPy was built with baseline optimizations (X86_V2)’ inside Docker containers on Proxmox.
- Technology mention: Proxmox Virtual Environment (PVE) and its CPU emulation settings, specifically the ‘kvm64’ default.
- Reader promise: You will learn how to configure Proxmox to expose necessary CPU features to your virtualized Docker and Kubernetes environments to restore ML workload stability.
Introduction
In the rapidly evolving landscape of containerized machine learning, stability is often taken for granted until a routine update triggers a catastrophic failure. For many engineers running ML pipelines on Proxmox, the recent update to NumPy 2.0 and beyond has introduced a frustrating hurdle. Suddenly, containers that were functioning perfectly are crashing on startup with a cryptic error message referencing baseline optimizations. This isn’t a bug in your code or a failure of the container image itself; it is a fundamental mismatch between the virtualized hardware exposed by Proxmox and the instruction set requirements of modern Python libraries.
When you deploy ML workloads in Docker or Kubernetes, you expect the container to leverage the underlying CPU’s capabilities. However, Proxmox defaults to a generic kvm64 CPU type for new virtual machines to ensure maximum portability across different physical hosts in a cluster. This setting effectively masks advanced CPU instructions like AVX, AVX2, and FMA, which are now mandatory requirements for modern NumPy releases. In this guide, we will dissect why these Proxmox kvm64 NumPy crash loops occur, how to identify the missing CPU flags, and the specific configuration changes required to align your virtualized infrastructure with the demands of modern data science stacks.
The Sudden Crash Loop in Your Docker ML Container
The first sign of trouble usually appears in your logs as a non-zero exit code during the initialization phase of a container. Whether you are running an Immich ML instance, a custom PyTorch training job, or a standard Jupyter notebook, the container fails to start. If you inspect the logs, you are met with a stack trace that points directly to the NumPy import process. The error explicitly states that the binary was built with baseline optimizations (X86_V2) that are not supported by the current CPU. This is particularly jarring because the host machine is likely a modern server-grade CPU that easily supports these features.
The issue arises because the container environment is isolated not just by namespaces and cgroups, but by the virtualized hardware layer provided by the Proxmox hypervisor. When the container attempts to execute vectorized operations—the bread and butter of NumPy—it queries the CPU for specific instruction sets. Under the default kvm64 configuration, the virtual CPU reports a feature set roughly equivalent to an Intel Pentium 4. Modern libraries, compiled with performance in mind, detect this lack of support and immediately abort execution to prevent illegal instruction traps.
This creates a circular dependency problem: the user updates their container image, the new image contains a version of NumPy that enforces these baseline requirements, and the container crashes. Because the underlying infrastructure (the Proxmox VM) hasn’t changed, the developer assumes the container image is broken. In reality, the image is fine; it is simply asking for a level of hardware performance that the hypervisor is currently withholding. This scenario is common in Kubernetes environments where nodes are provisioned as VMs, leading to entire clusters failing to schedule ML pods after a simple dependency update.
Understanding the NumPy X86_V2 Baseline Optimization Error
To understand the Proxmox kvm64 NumPy crash loops, we must look at how modern software is built. NumPy 2.0 introduced significant changes in how it detects and utilizes CPU features. The developers implemented a baseline requirement system, specifically the X86_V2 architecture level. This is not a random versioning scheme; it refers to a set of CPU features that include SSE3, SSSE3, SSE4.1, SSE4.2, and POPCNT. Any CPU lacking these features is considered too legacy for the optimized math routines that modern NumPy performs.
When NumPy imports, it executes a series of hardware capability checks. If the CPU identifier doesn’t report these flags, the library throws a RuntimeError. In a virtualized environment, these flags are passed through from the physical CPU to the guest OS. If your Proxmox VM is configured to use the kvm64 CPU type, the hypervisor explicitly strips away these advanced flags, even if your physical host is a state-of-the-art Xeon or EPYC processor. The software sees a ‘kvm64’ CPU, which is essentially a lowest-common-denominator emulation, and concludes that it cannot safely run its optimized code.
The impact of this is not limited to NumPy. Other libraries like TensorFlow, PyTorch, and even some high-performance database engines rely on these exact same instruction sets. If you are seeing this error, it is a clear indicator that your virtualization layer is effectively ‘blinding’ your software to the hardware it is running on. This is a deliberate design choice in virtualization to allow for live migration of VMs between hosts with different CPU models, but it is a major bottleneck for high-performance computing (HPC) and ML workloads.
How the Proxmox kvm64 Default CPU Setting Hides Hardware Capabilities
The kvm64 CPU type is the default for a reason: it is the most compatible. It allows a VM to move from an older Intel-based Proxmox node to a newer AMD-based node without the guest OS panicking due to a change in the underlying CPU architecture. However, in the context of ML workloads, this compatibility comes at a significant cost. By choosing kvm64, you are telling Proxmox to emulate a generic, feature-poor CPU. This emulation layer is responsible for translating or suppressing CPUID instructions that would otherwise reveal the true power of your physical hardware.
When an application inside your Docker container executes the cpuid instruction, the Proxmox hypervisor intercepts this request. Instead of passing through the actual capabilities of your host CPU, it returns a hardcoded response that matches the kvm64 specification. This is why your logs show that your CPU lacks the necessary baseline optimizations. The hypervisor is effectively lying to the container. While this is great for cluster stability and live migration, it is catastrophic for performance-sensitive applications that need to know exactly what the hardware can do.

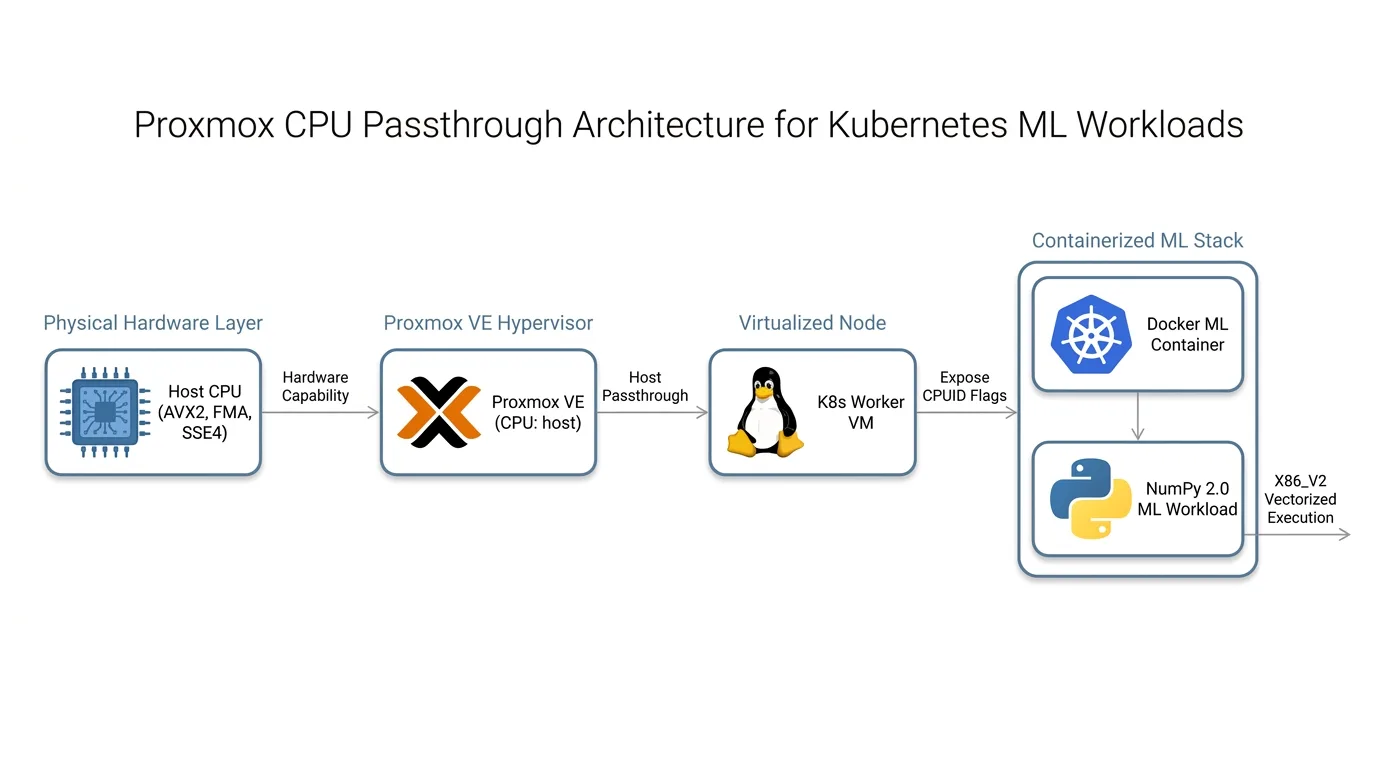

For Kubernetes clusters running on Proxmox, this is a critical configuration oversight. If your worker nodes are VMs configured with the default CPU type, your pods will never be able to utilize AVX instructions. This leads to massive performance degradation even if the software doesn’t crash, as the library will fall back to slower, non-vectorized code paths. To fix this, we must change the CPU type from kvm64 to host, which instructs Proxmox to pass the physical CPU’s features directly to the VM. This is the only way to ensure that your ML containers have full access to the instruction sets they require.
Step-by-Step: Configuring Proxmox to Support Modern ML Containers
To resolve the Proxmox kvm64 NumPy crash loops, you need to modify the virtual machine hardware settings in the Proxmox web interface. This process is straightforward but requires a VM reboot to take effect. By changing the CPU type, you allow the guest OS to see the actual flags of your physical CPU, which satisfies the NumPy X86_V2 requirement.
Follow these steps to update your VM configuration:
- Shut down the VM that is running your Docker or Kubernetes ML workload.
- Navigate to the Proxmox web interface and select the VM from the left-hand sidebar.
- Click on the Hardware tab in the main view.
- Select Processors and click Edit.
- Change the Type from ‘kvm64’ to ‘host’.
- Ensure that ‘kvm’ is enabled and click OK.
This change is immediate once the VM boots. The ‘host’ setting is the most performant option as it removes the emulation layer. However, if you are in a cluster environment and need to migrate this VM to other nodes, ensure that all your physical nodes have CPUs with similar capabilities, or consider using the ‘host-passthrough’ or ‘max’ CPU types if you need a balance between performance and compatibility.
# Example Proxmox VM configuration file (/etc/pve/qemu-server/100.conf)
# Changing the cpu line to 'host' enables full instruction set passthrough
agent: 1
boot: order=scsi0;net0
cores: 4
cpu: host
memory: 8192
name: ml-worker-node
scsihw: virtio-scsi-pci
GitHub Repository
proxmox-ml-tuning-scripts
Automated scripts to verify and tune Proxmox VM CPU flags for high-performance ML workloads.
Verifying Your Docker and Kubernetes ML Environment
Once you have updated the CPU type to ‘host’ and rebooted the VM, you need to verify that the changes have propagated into your containers. The simplest way to do this is by checking the CPU flags inside the container using the lscpu command or by inspecting the NumPy configuration directly via a Python one-liner.
Run the following command inside your running container to verify that the necessary instruction sets are now visible:
# Verify CPU flags inside your container
# Look for avx, avx2, fma, sse4_1, sse4_2 in the flags output
cat /proc/cpuinfo | grep flags | head -n 1
# Test NumPy import to ensure the X86_V2 error is gone
python3 -c "import numpy; print(f'NumPy version: {numpy.__version__}')"
If the python3 command executes without printing a RuntimeError, your fix is successful. If you are using Kubernetes, you may need to restart your pods to ensure they are rescheduled onto the updated node. If you are using a managed Kubernetes distribution like K3s or RKE2, you might also consider setting the node labels to indicate that these nodes support AVX instructions, allowing you to use node affinity to schedule ML workloads specifically on these tuned VMs.
It is also worth noting that if you are running a large-scale cluster, you can automate this check as part of your CI/CD pipeline. By adding a small ‘pre-flight’ container to your Helm charts that checks for these CPU flags, you can prevent pods from entering a crash-loop state in the first place. This proactive approach is essential for maintaining high availability in production environments where infrastructure changes can have cascading effects on application stability.
# Example Kubernetes Pod manifest with node affinity for AVX-capable nodes
apiVersion: v1
kind: Pod
metadata:
name: ml-inference-service
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: feature.node.kubernetes.io/cpu-avx2
operator: In
values:
- "true"
containers:
- name: ml-app
image: my-ml-image:latest
Conclusion
The Proxmox kvm64 NumPy crash loops are a classic example of how abstraction layers in virtualization can conflict with the performance requirements of modern software. By defaulting to a generic CPU type, Proxmox prioritizes cluster portability at the expense of hardware-specific optimizations that libraries like NumPy now demand. As we have demonstrated, the fix is not to downgrade your software or revert to older, insecure versions of your ML dependencies, but rather to align your virtualized hardware with the capabilities of your physical host.
By switching your VM CPU type to ‘host’, you unlock the full potential of your underlying silicon, allowing your Docker and Kubernetes workloads to run as intended. This configuration change is a mandatory step for any engineer deploying high-performance ML pipelines on Proxmox. Take the time to audit your virtualization settings today, ensure your nodes are properly tuned, and stop the cycle of unnecessary crash loops. Your ML models—and your sanity—will thank you for it.
